Picture gallery – FR 100

FR100 Flat belt roller conveyor

: Flat belt conveyor. Are used for the transport of goods up to 100 kg/m.

: Flat belt conveyor with pushers. Image from factory.

: Flat belt conveyor with pushers. Image from factory.

: Image from factory.

FR100 Gate

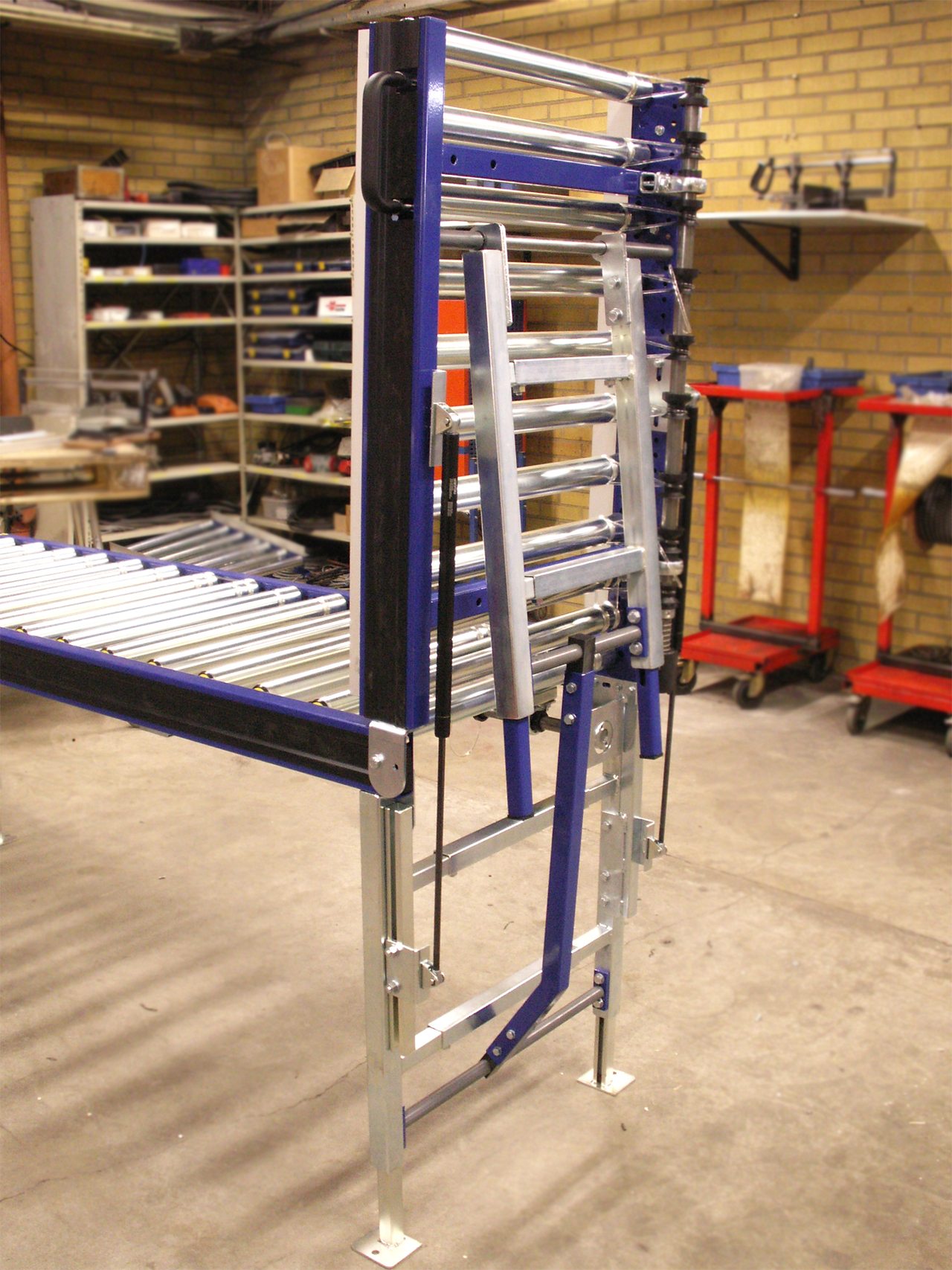

: Gate with folding support upward. For free passage through roller conveyor.

: Gate with folding support lowered.

: Gate. For personnel passage.

FR100 Angle connection

: Angle connection 45° with lateral guiding in wheels. For input to a main conveyor when speeds are high and the goods direction compared to the roller conveyor should remain.

: Angle connection with curve. For input to a main conveyor when speeds are high and the goods direction compared to the roller conveyor should remain.

: Angle connection with curve. For input to a main conveyor when speeds are high and the goods direction compared to the roller conveyor should remain

FR100 Curves

: Curve 90°. Are used for the change of the conveying direction with 90°. The goods keep its orientation in relation to the roller conveyor.

: Curve 45°. Are used for the change of the conveying direction with 45°. The goods keep its orientation in relation to the roller conveyor.

: Curve 90°. Are used for the change of the conveying direction with 90°. The goods keep its orientation in relation to the roller conveyor.

FR100 Stop

: Seperation Stop. For the separation of accumulated goods.

: Positioning Stop. Stop for the positioning of goods before transfering, at a pusher, workstation and for other such reasons.

: FR100 Stop Hand Operated. For the separation of accumulated goods.

: Fixed stop angle bar. For stopping goods from being transported further on a roller conveyor.

: Fixed stop roller with end plate that covers conveyor end. For stopping goods. The roller makes it easier to remove the the goods by hand.

: Fixed stop roller. For stopping of goods. The roller makes it easier to remove the the goods by hand.

FR100 Roller brake

: Roller Brake Type RB. For breaking a section with rollers in a powered accumulating or unpowered roller conveyor.

FR100 Transveyor

: Triple transveyor. For 90° transfer between 3 parallel roller conveyors.

: Transveyor with 8 cog belt. For 90° transfer between main conveyor and side conveyors.

: 10-stringed double transveyor. For 90° transfer between 2 parallel roller conveyors. More strings are used if the goods are in different sizes.

: Extended 10-stringed transveyor. For 90° transfer between main conveyor and side conveyors. Used for safer transport of goods.

: Triple transveyor. For 90° transfer between 3 parallel roller conveyors.

FR100 Pusher

: Pusher pneumatic side mounted. For 90° transfer between 2 parallel roller conveyors.

: Pusher below the rollers. For 90° transfer between 2 parallel roller conveyors.

: Pusher pneumatic. For 90° transfer between 2 parallel roller conveyors.

: Pusher over head with drive unit. For 90° transfer between 2 parallel roller conveyors.

: Pusher over head with drive unit. For 90° transfer between 2 parallel roller conveyors.

: Pneumatic pusher. For 90° transfer between 2 parallel roller conveyors.

: Carrier. For 90° transfer between 2 parallel roller conveyors.

FR100 Lift and rotate device

: Electrical Lift And Rotate Device. For the turn of 90° or 180° in both directions.

: Lift and rotate device electrical. For the turn of 90° or 180° in both directions.

: Big lift and rotate device electrical. For the turn of 90° or 180° in both directions.

: Lift and rotate device electrical. Image from factory. For the turn of 90° or 180° in both directions.

: Turn pin mechanical. Turning of goods 90° when all goods should be turned.

: Turn wheel with adjustable attachment type JB. Turning of goods at crossing between two conveyors.

: Turn wheel on drive unit. Turning of goods at crossing between two conveyors.

FR100 Elevator

: Elevator in factory. For handling of goods between different levels.

: Elevator pneumatic. For handling of goods between different levels.

: Elevator with cog belt. For handling of goods between different levels.

: Elevator custom. For handling of goods between different levels.

FR100 Turntable

: Turntable with roller conveyor. Turning of conveyor ± 90° alternative 0-180°.

: Turntable roller conveyor with transveyor. Turning of conveyor ± 90° alternative 0-180°.

FR100 Transfercar

: Transfercar. For the cross conveyance and distribution of goods between different stations.

: Transfercar. Image from factory.

: Transfercar. For the cross conveyance and distribution of goods between different stations.

FR100 Accessories

: Lateral guiding fixed, type FSS. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Lateral guiding fixed, type KSS. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Adjustable lateral guiding, type JSS. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Adjustable lateral guiding. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Adjustable lateral guiding with wheels. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Adjustable lateral guiding with wheels. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Walk plate, type GP. For passage over roller conveyor.

: Attachment bracket. For attaching roller conveyors in a 90° angle.

: GFU sensor bracket outside frame. For mounting of photoelectric sensor and reflex on the outside of the frame of the conveyor.

: Hydraulic lifting and lowering support. Are used to lift and lower as desired.

: PVC coated rollers. Are used when it is sensitive goods, also means that the goods get better hold.

: Stair.
