AX100 Roller conveyor

: Drive Shaft System. The roller conveyor is driven by a shaft and driv belts.

: Roller Conveyor with fixed lateral guides. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Roller conveyor with fixed lateral guides. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Box handling. The roller conveyor drives the box along the conveyor with help by fixed lateral guides.

: Double transveyor belt. For 90° transfer between 2 parallel roller conveyors.

: Roller conveyor with curve and fixed lateral guides. For change of the conveying direction with 90°.

: Double Transveyor belt. For 90* transfer between 2 parallel roller conveyors.

AX100 Gate

: Gate with folding support lowered.

: Gate with folding support upward. For free passage through roller conveyor.

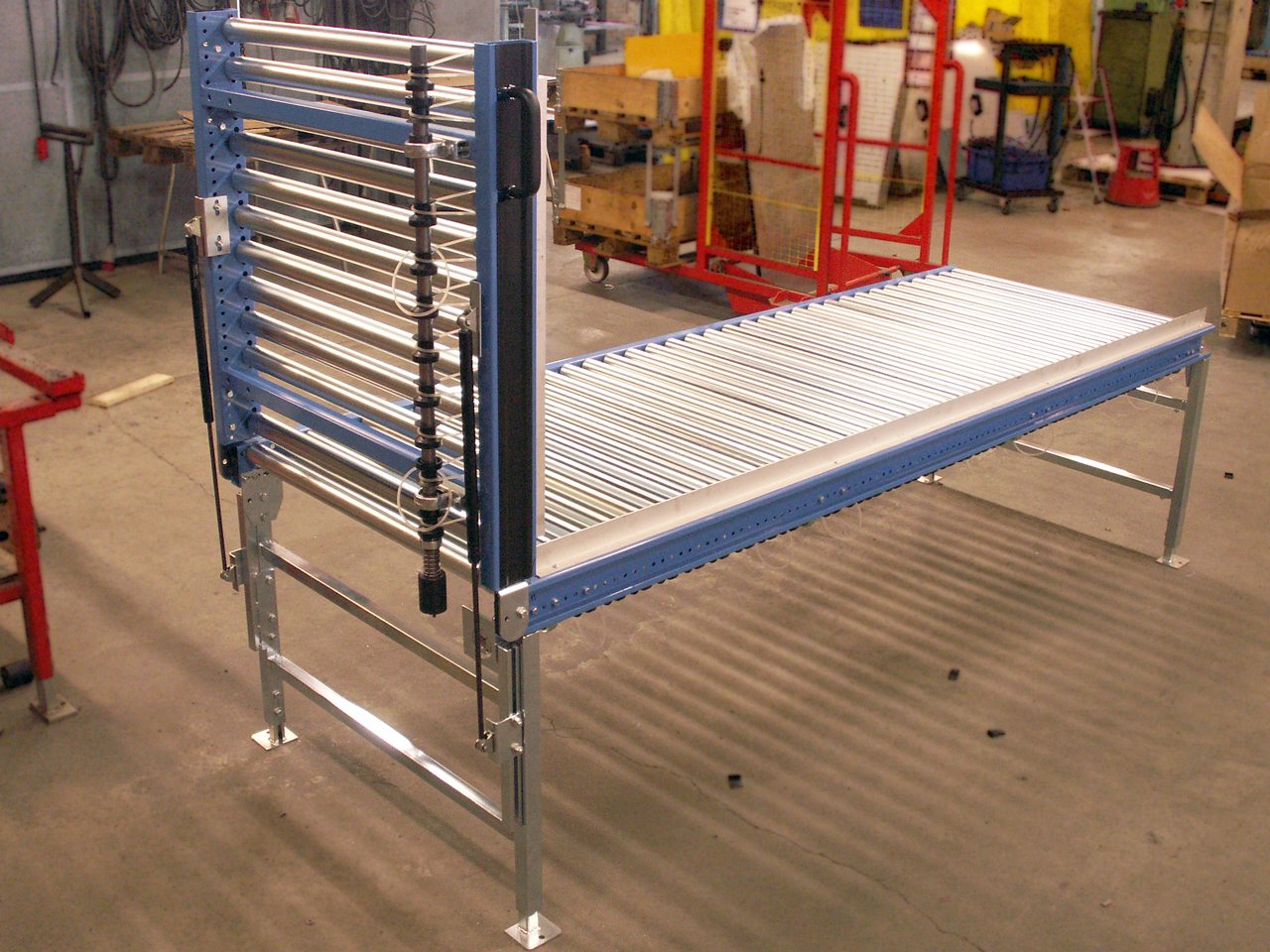

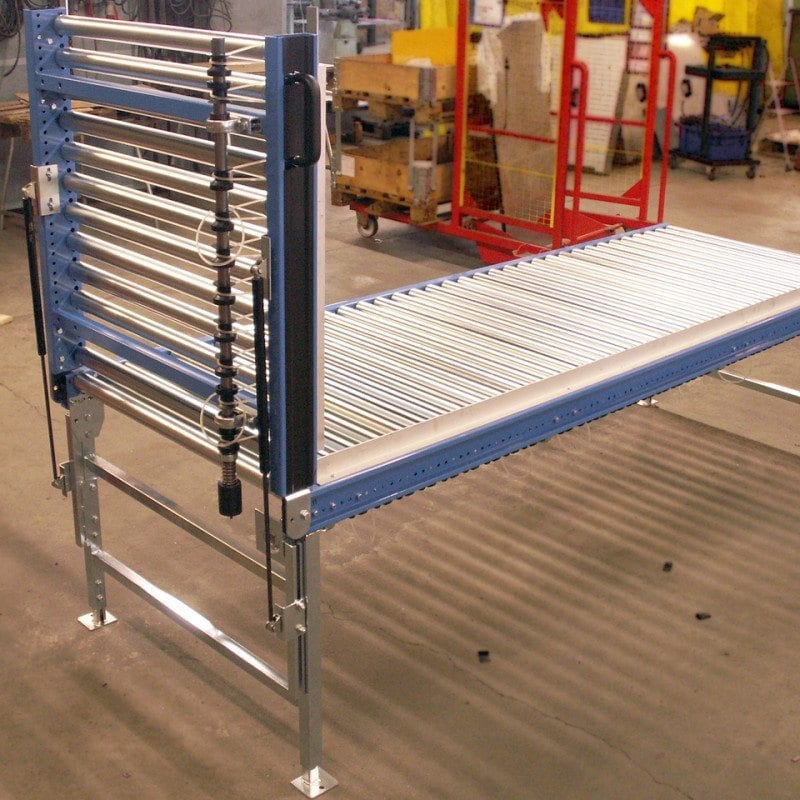

: Driven Gate. For personnel passage.

AX100 Angle connection

: Angle connection with curve. For input to a main conveyor when speeds are high and the goods direction compared to the roller conveyor should remain.

: Angle connection. For input to a main conveyor when speeds are high and the goods direction compared to the roller conveyor should remain.

: Angle connection with curve. For input to a main conveyor when speeds are high and the goods direction compared to the roller conveyor should remain.

AX100 Curves

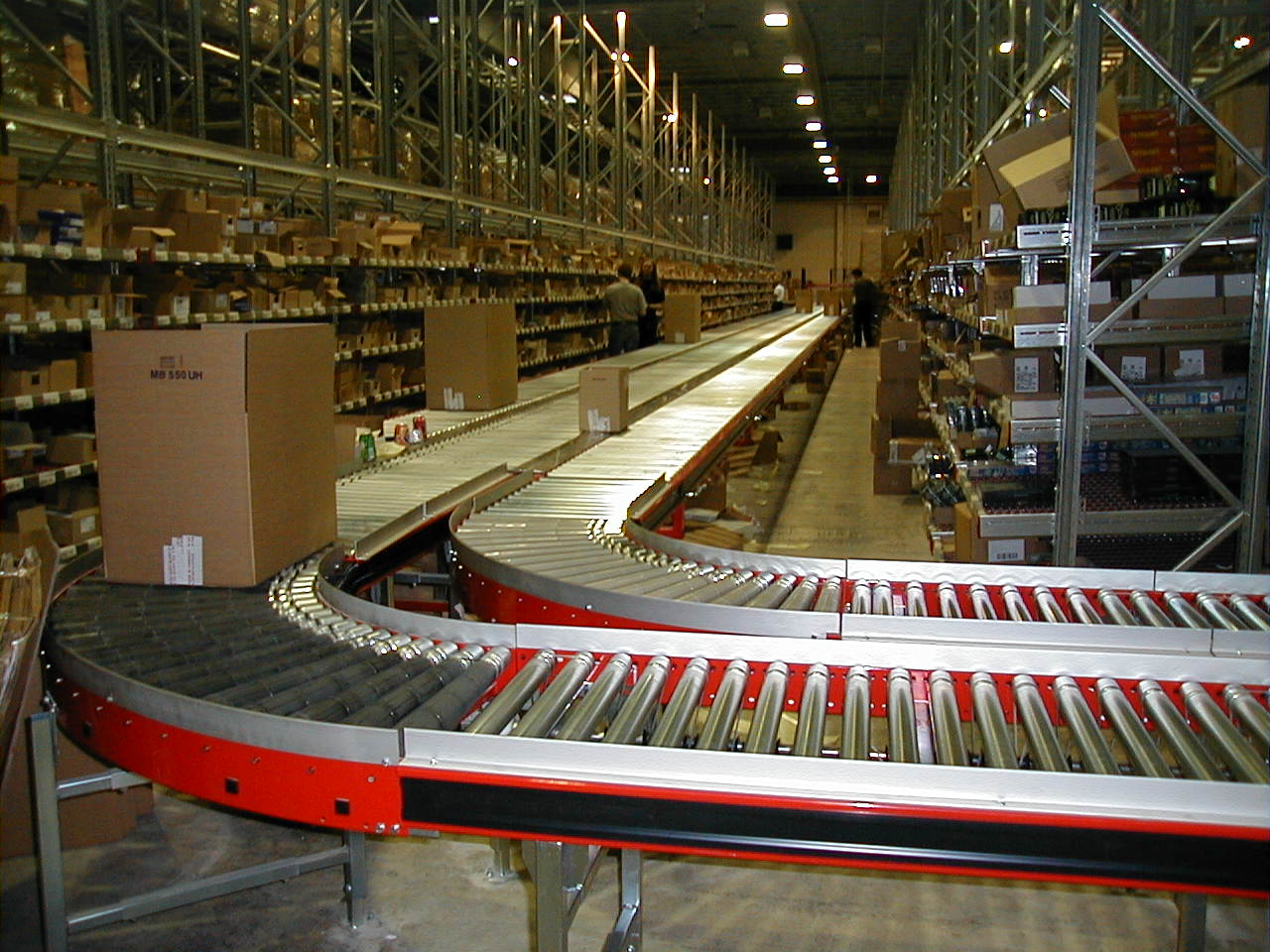

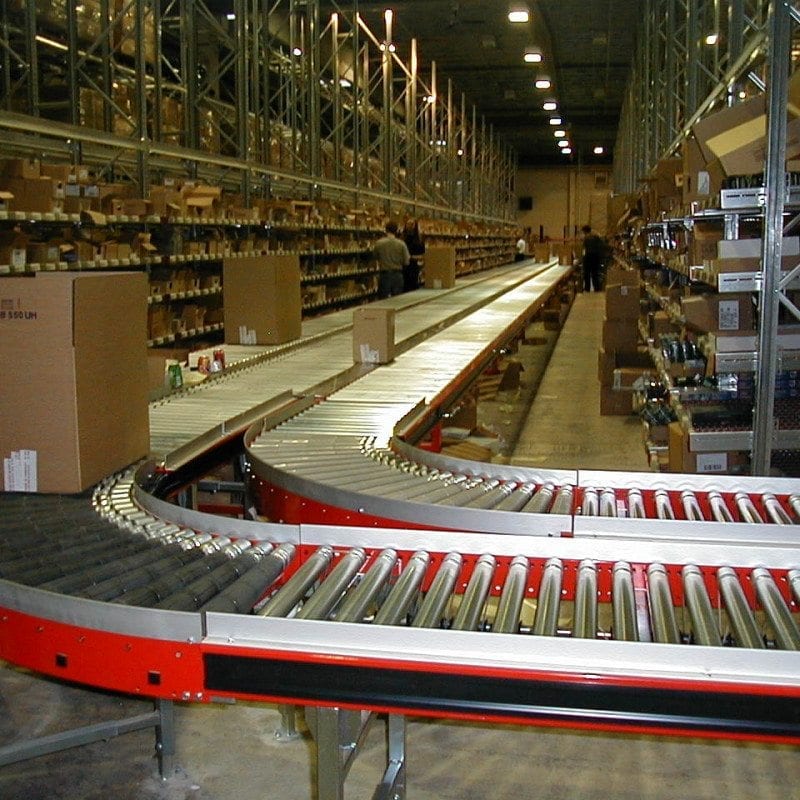

: Curve 180°. For change of the conveying direction with 180°. The goods keep its orientation in relation to the roller conveyor.

: Curve 45°. For change of the conveying direction with 45°. The goods keep its orientation in relation to the roller conveyor.

: Curve 180° with fixed lateral guides. For change of the conveying direction with 180°. The goods keep its orientation in relation to the roller conveyor.

: Curve 90°. Image from factory.

: Double Curve 45° with fixed lateral guides.. For change of the conveying direction with 180°. The goods keep its orientation in relation to the roller conveyor.

: Curve 90°. For change of the conveying direction with 180°. The goods keep its orientation in relation to the roller conveyor.

AX100 Support

: Support. Designed for usage with all conveyors in the FR100 system.

: Support. Designed for usage with all conveyors in the FR100 system.

: Support folding for gate. Used as centre support for two gates that fold against each other.

AX100 Drive unit

: Drive Unit Type DR. For driving of roller conveyor AX100.

: Drive Unit Curve. For driving of roller conveyor AX100.

: AX100 Driver Roller. Driving of shorter roller conveyor.

AX100 Stop

: Separation Stop. For the separation of accumulated goods.

: Positioning Stop. Stop for the positioning of goods before transfering, at a pusher, workstation and for other such reasons.

: Stop Hand Operated. For stopping goods manually.

: Fixed stop angle bar. For stopping goods from being transported further on a roller conveyor.

: Fixed stop roller with end plate that covers conveyor end. For stopping goods. The roller makes it easier to remove the the goods by hand.

: Fixed stop roller. For stopping of goods. The roller makes it easier to remove the the goods by hand.

AX100 Roller brake

: Roller Brake Type RB. For breaking a section with rollers in a powered accumulating or unpowered roller conveyor.

AX100 Transveyor

: Transveyor belt single. For 90° transfer between main conveyor and side conveyors.

: Transveyor belt single. For 90° transfer between main conveyor and side conveyors.

: 4-stringed single transveyor. For 90° transfer between main conveyor and side conveyors. More strings are used if the goods are in different sizes.

: 4-Stringed transveyor. For 90° transfer between main conveyor and side conveyors. More strings are used if the goods are in different sizes.

: Extended 4-stringed transveyor. For 90° transfer between main conveyor and side conveyors. Used for safer transport of goods.

: Double transveyor. For 90° transfer between 2 parallel roller conveyors.

: Double transveyor. For 90° transfer between 2 parallel roller conveyors.

: 4-Stringed double transveyor. For 90° transfer between 2 parallel roller conveyors. More strings are used if the goods are in different sizes.

: Turntable roller conveyor with transveyor. For 90° transfer between main conveyor and side conveyors. More strings are used if the goods are in different sizes.

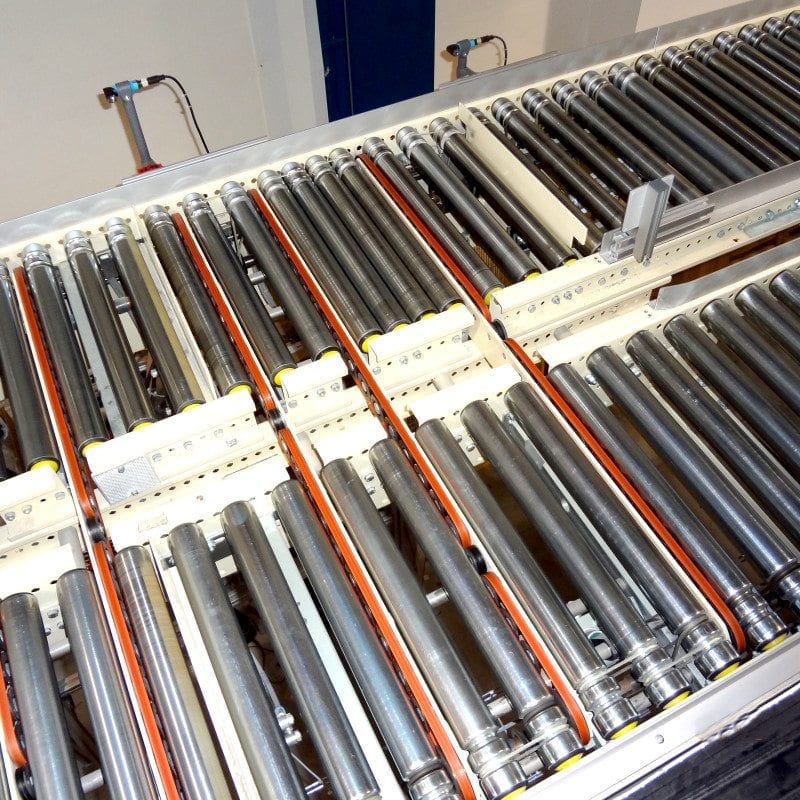

: Triple chain transveyor. For 90° transfer between 3 parallel roller conveyors.

: Transveyor with cog belt. For 90° transfer between main conveyor and side conveyors.

: Double Transveyor with cog belt. For 90° transfer between 2 parallel roller conveyors.

AX100 Pusher

: Pusher pneumatic side mounted. For 90° transfer between 2 parallel roller conveyors.

: Pusher below the rollers. For 90° transfer between 2 parallel roller conveyors.

: Pusher pneumatic. For 90° transfer between 2 parallel roller conveyors.

: Pusher over head with drive unit. For 90° transfer between 2 parallel roller conveyors.

: Pusher over head with drive unit. For 90° transfer between 2 parallel roller conveyors.

: Pneumatic pusher. For 90° transfer between 2 parallel roller conveyors.

: Carrier. For 90° transfer between 2 parallel roller conveyors.

AX100 Rotation modules

: Lift and rotate device electrical. For the turn of 90° or 180° in both directions.

: Big lift and rotate device electrical. For the turn of 90° or 180° in both directions.

: Lift and rotate device electrical. Image from factory. For the turn of 90° or 180° in both directions.

: Turn wheel with adjustable attachment type JB. Turning of goods at crossing between two conveyors.

: Turn wheel on drive unit. Turning of goods at crossing between two conveyors.

: Turn pin mechanical. Turning of goods 90° when all goods should be turned.

AX100 Elevator

: Elevator in factory. For handling of goods between different levels.

: Elevator pneumatic. For handling of goods between different levels.

: Elevator with cog belt. For handling of goods between different levels.

: Elevator custom. For handling of goods between different levels.

AX100 Turntable

: Turntable with roller conveyor. Turning of conveyor ± 90° alternative 0-180°.

: Turntable roller conveyor with transveyor. Turning of conveyor ± 90° alternative 0-180°.

AX100 Transfercar

: Transfercar. For the cross conveyance and distribution of goods between different stations.

: Transfercar. Image from factory.

: Transfercar. For the cross conveyance and distribution of goods between different stations.

AX100 Centering unit

: AX100 Centering device. Are used to center the goods.

AX100 Accessories

: Lateral guiding fixed, type FSS. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Lateral guiding fixed, type KSS. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Adjustable lateral guiding, type JSS. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Adjustable lateral guiding. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Adjustable lateral guiding with wheels. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Adjustable lateral guiding with wheels. Are used to keep the transport goods in its place on the conveyor or to guide the goods in the conveying direction.

: Walk plate, type GP. For passage over roller conveyor.

: Attachment bracket. For attaching roller conveyors in a 90° angle.

: Safety plate drive shaft. Protects so that no one gets caught in the drive shaft

: GFU sensor bracket outside frame. For mounting of photoelectric sensor and reflex on the outside of the frame of the conveyor.

: Hydraulic lifting and lowering support. Are used to lift and lower as desired.

: PVC coated rollers. Are used when it is sensitive goods, also means that the goods get better hold.

: Stair.

AX100 Components

: Pulley accu D29 art.nr 9990530014

: Pulley fixed/accu D29 art.nr 9990530024

: Pulley accu D42 art.nr 3600056342

: Seperation pulley small D80x41 art.nr 9990530054

: Seperation pulley big D80x57 art.nr 9990530044

: Separable pulley art.nr 9990254312

: Flexible gear coupling, for drive shafts art.nr 3600002807

: Welding fixture for PU belt artnr 6300230010

: Case with welding equipment for drive belt artnr 6300870006
